Mouse ERK1/2(Extracellular Signal Regulated Kinase 1/2) ELISA Kit
ELK0019
Size： Price：
48 T $320.00
96 T $458.00
Manual MSDS Send email to us

Overview

Product name: Mouse ERK1/2(Extracellular Signal Regulated Kinase 1/2) ELISA Kit
Reactivity: Mouse
Alternative Names: ERK; ERK-2; ERK2; ERT1; MAPK2; NS13; P42MAPK; PRKM1; PRKM2; p38; p40; p41; p41mapk; p42-MAPK
Assay Type: Sandwich
Sensitivity: 0.12 ng/mL
Standard: 50 ng/mL
Detection Range: 0.78-50 ng/mL
Sample Type: tissue homogenates, cell lysates and other biological fluids
Assay Length: 3.5h
Research Area: Signal transduction;Enzyme & Kinase;Apoptosis;Tumor immunity;
Test principle: The test principle applied in this kit is Sandwich enzyme immunoassay. The microtiter plate provided in this kit has been pre-coated with an antibody specific to Mouse ERK1/2. Standards or samples are added to the appropriate microtiter plate wells then with a biotin-conjugated antibody specific to Mouse ERK1/2. Next, Avidin conjugated to Horseradish Peroxidase (HRP) is added to each microplate well and incubated. After TMB substrate solution is added, only those wells that contain Mouse ERK1/2, biotin-conjugated antibody and enzyme-conjugated Avidin will exhibit a change in color. The enzyme-substrate reaction is terminated by the addition of sulphuric acid solution and the color change is measured spectrophotometrically at a wavelength of 450nm ± 10nm. The concentration of Mouse ERK1/2 in the samples is then determined by comparing the OD of the samples to the standard curve.

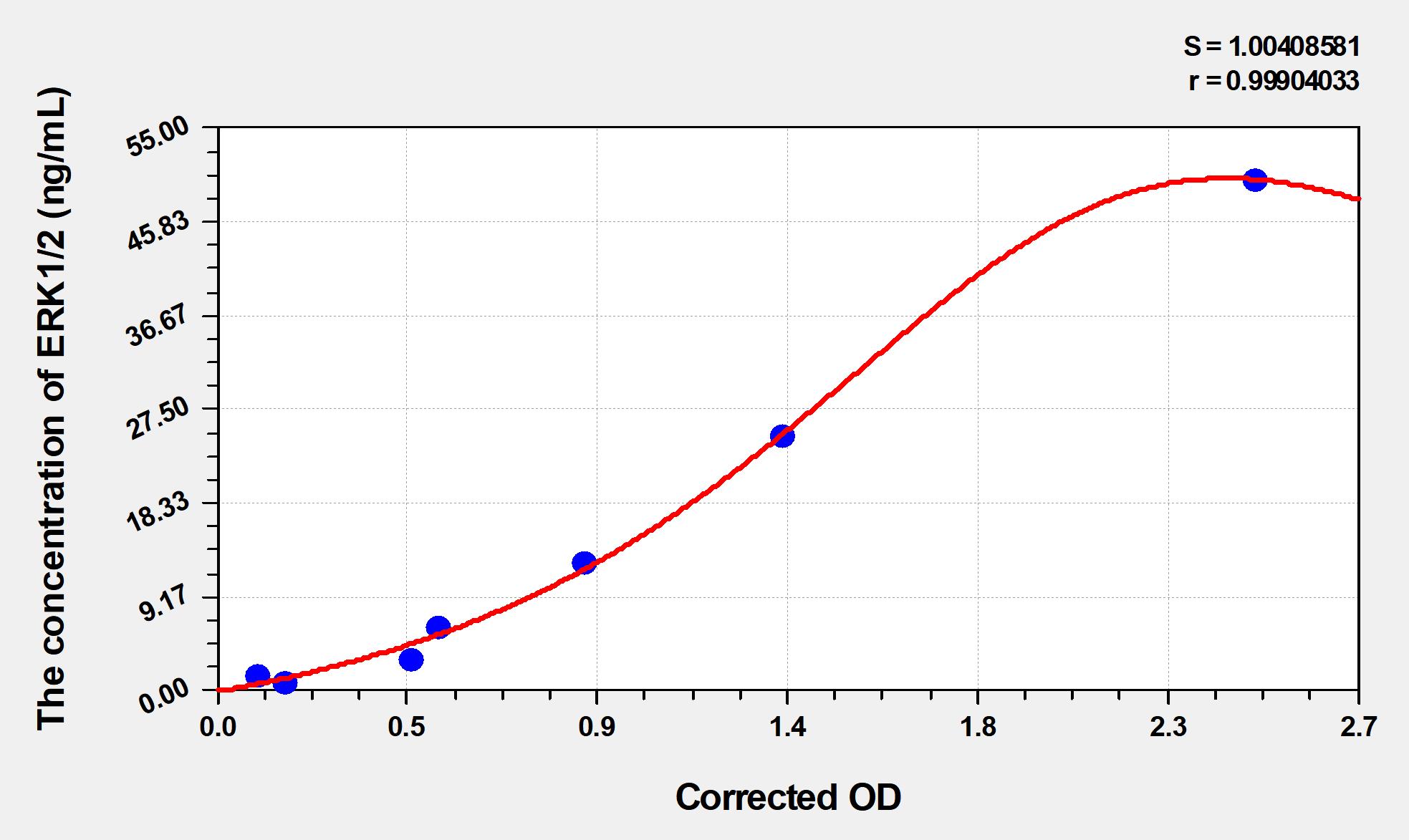

Standard curve

Concentration (ng/mL) OD Corrected OD
50.00 2.532 2.459
25.00 1.412 1.339
12.50 0.947 0.874
6.25 0.599 0.526
3.13 0.535 0.462
1.57 0.168 0.095
0.79 0.232 0.159
0.00 0.073 0.000

Precision

Intra-assay Precision (Precision within an assay)：CV%<8%

Three samples of known concentration were tested twenty times on one plate to assess intra-assay precision.

Inter-assay Precision (Precision between assays)：CV%<10%

Three samples of known concentration were tested in forty separate assays to assess inter-assay precision.

Recovery

Matrices listed below were spiked with certain level of recombinant ERK1/2 and the recovery rates were calculated by comparing the measured value to the expected amount of ERK1/2 in samples.
Matrix Recovery range Average
serum(n=5) 79-91% 85%
EDTA plasma(n=5) 81-97% 89%
Heparin plasma(n=5) 84-99% 91%

Linearity

The linearity of the kit was assayed by testing samples spiked with appropriate concentration of ERK1/2 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.
Matrix 1:2 1:4 1:8 1:16
serum(n=5) 85-94% 87-101% 86-97% 88-95%
EDTA plasma(n=5) 85-94% 97-106% 92-101% 82-90%
Heparin plasma(n=5) 95-103% 89-101% 87-98% 85-92%
